使用itext对pdf指定文字位置插入图片

原创知北行最后发布于2019-10-20 21:28:38 阅读数 144 收藏

展开

使用java开源itext库对pdf进行操作，分主要分两步先查找指定文字位置，然后再在指定位置插入图片。

1.查找指定文字的坐标位置

这里主要通过实现类RenderListener来完成查找坐标位置

代码如下：

1
package com.anyu.PDFUtils;
2

3
import java.io.File;
4
import java.io.FileInputStream;
5
import java.io.IOException;
6
import java.util.ArrayList;
7
import java.util.Arrays;
8
import java.util.List;
9

10

11
import com.itextpdf.awt.geom.Rectangle2D.Float;
12
import com.itextpdf.text.Rectangle;
13
import com.itextpdf.text.pdf.PdfDictionary;
14
import com.itextpdf.text.pdf.PdfName;
15
import com.itextpdf.text.pdf.PdfReader;
16
import com.itextpdf.text.pdf.parser.ContentByteUtils;
17
import com.itextpdf.text.pdf.parser.ImageRenderInfo;
18
import com.itextpdf.text.pdf.parser.PdfContentStreamProcessor;
19
import com.itextpdf.text.pdf.parser.RenderListener;
20
import com.itextpdf.text.pdf.parser.TextRenderInfo;
21

22

23
public class PdfKeywordFinder {
24

25

26
    public static void main(String[] args) throws IOException {
27

28
        String keyword = "甲方签字：";
29
        List<float[]> positions = findKeywordPostions("E:\\Desktop\\pdftest.pdf", keyword);
30

31
        System.out.println("total:" + positions.size());
32
        if (positions != null && positions.size() > 0) {
33
            for (float[] position : positions) {
34
                System.out.print("pageNum: " + (int) position[0]);
35
                System.out.print("\tx: " + position[1]);
36
                System.out.println("\ty: " + position[2]);
37
                System.out.println("\tcharWidth:" + position[3]);//每个字符的宽度
38
            }
39
        }
40
    }
41

42
    /**
43
     * @description: 查找插入签名图片的最终位置，因为是插入签名图片，所以之前的关键字应只会出现一次
44
     * 这里直接使用了第一次查找到关键字的位置，并返回该关键字之后的坐标位置
45
     * @return: float[0]:页码，float[1]:最后一个字的x坐标，float[2]:最后一个字的y坐标
46
     */
47
    public static float[] getAddImagePositionXY(String pdfName, String keyword) throws IOException {
48
        float[] temp = new float[3];
49
        List<float[]> positions = PdfKeywordFinder.findKeywordPostions(pdfName, keyword);
50
//        PdfReader pdfReader = new PdfReader(pdfName);
51
//        Rectangle pageSize = pdfReader.getPageSize(1);
52
//        temp[0]=positions.get(0)[0];
53
//        temp[1]=positions.get(0)[1]*pageSize.getWidth();
54
//        temp[2]=positions.get(0)[2]*pageSize.getHeight();
55
        temp[0] = positions.get(0)[0];
56
        temp[1] = positions.get(0)[1] + (keyword.length() * positions.get(0)[3]);
57
        temp[2] = positions.get(0)[2] - positions.get(0)[3];
58

59
        return temp;
60
    }
61

62
    /**
63
     * findKeywordPostions
64
     *  返回查找到关键字的首个文字的左上角坐标值
65
     *
66
     * @param pdfName
67
     * @param keyword
68
     * @return List<float [ ]> : float[0]:pageNum float[1]:x float[2]:y
69
     * @throws IOException
70
     */
71
    public static List<float[]> findKeywordPostions(String pdfName, String keyword) throws IOException {
72
        File pdfFile = new File(pdfName);
73
        byte[] pdfData = new byte[(int) pdfFile.length()];
74
        FileInputStream inputStream = new FileInputStream(pdfFile);
75
        //从输入流中读取pdfData.length个字节到字节数组中，返回读入缓冲区的总字节数，若到达文件末尾，则返回-1
76
        inputStream.read(pdfData);
77
        inputStream.close();
78

79
        List<float[]> result = new ArrayList<>();
80
        List<PdfPageContentPositions> pdfPageContentPositions = getPdfContentPostionsList(pdfData);
81

82

83
        for (PdfPageContentPositions pdfPageContentPosition : pdfPageContentPositions) {
84
            List<float[]> charPositions = findPositions(keyword, pdfPageContentPosition);
85
            if (charPositions == null || charPositions.size() < 1) {
86
                continue;
87
            }
88
            result.addAll(charPositions);
89
        }
90
        return result;
91
    }
92

93

94
    private static List<PdfPageContentPositions> getPdfContentPostionsList(byte[] pdfData) throws IOException {
95
        PdfReader reader = new PdfReader(pdfData);
96

97

98
        List<PdfPageContentPositions> result = new ArrayList<>();
99

100

101
        int pages = reader.getNumberOfPages();
102
        for (int pageNum = 1; pageNum <= pages; pageNum++) {
103
            float width = reader.getPageSize(pageNum).getWidth();
104
            float height = reader.getPageSize(pageNum).getHeight();
105

106

107
            PdfRenderListener pdfRenderListener = new PdfRenderListener(pageNum, width, height);
108

109

110
//解析pdf，定位位置
111
            PdfContentStreamProcessor processor = new PdfContentStreamProcessor(pdfRenderListener);
112
            PdfDictionary pageDic = reader.getPageN(pageNum);
113
            PdfDictionary resourcesDic = pageDic.getAsDict(PdfName.RESOURCES);
114
            try {
115
                processor.processContent(ContentByteUtils.getContentBytesForPage(reader, pageNum), resourcesDic);
116
            } catch (IOException e) {
117
                reader.close();
118
                throw e;
119
            }
120

121

122
            String content = pdfRenderListener.getContent();
123
            List<CharPosition> charPositions = pdfRenderListener.getcharPositions();
124

125

126
            List<float[]> positionsList = new ArrayList<>();
127
            for (CharPosition charPosition : charPositions) {
128
                float[] positions = new float[]{charPosition.getPageNum(), charPosition.getX(), charPosition.getY(), charPosition.getCharWidth()};
129
                positionsList.add(positions);
130
            }
131

132

133
            PdfPageContentPositions pdfPageContentPositions = new PdfPageContentPositions();
134
            pdfPageContentPositions.setContent(content);
135
            pdfPageContentPositions.setPostions(positionsList);
136

137

138
            result.add(pdfPageContentPositions);
139
        }
140
        reader.close();
141
        return result;
142
    }
143

144

145
    private static List<float[]> findPositions(String keyword, PdfPageContentPositions pdfPageContentPositions) {
146

147

148
        List<float[]> result = new ArrayList<>();
149

150

151
        String content = pdfPageContentPositions.getContent();
152
        List<float[]> charPositions = pdfPageContentPositions.getPositions();
153

154

155
        for (int pos = 0; pos < content.length(); ) {
156
            int positionIndex = content.indexOf(keyword, pos);
157
            if (positionIndex == -1) {
158
                break;
159
            }
160
            float[] postions = charPositions.get(positionIndex);
161
            result.add(postions);
162
            pos = positionIndex + 1;
163
        }
164
        return result;
165
    }
166

167
    private static class PdfPageContentPositions {
168
        private String content;
169
        private List<float[]> positions;
170

171

172
        public String getContent() {
173
            return content;
174
        }
175

176

177
        public void setContent(String content) {
178
            this.content = content;
179
        }
180

181

182
        public List<float[]> getPositions() {
183
            return positions;
184
        }
185

186

187
        public void setPostions(List<float[]> positions) {
188
            this.positions = positions;
189
        }
190
    }
191

192
    private static class PdfRenderListener implements RenderListener {
193
        private int pageNum;
194
        private float pageWidth;
195
        private float pageHeight;
196
        private StringBuilder contentBuilder = new StringBuilder();
197
        private List<CharPosition> charPositions = new ArrayList<>();
198

199

200
        public PdfRenderListener(int pageNum, float pageWidth, float pageHeight) {
201
            this.pageNum = pageNum;
202
            this.pageWidth = pageWidth;
203
            this.pageHeight = pageHeight;
204
        }
205

206

207
        @Override
208
        public void beginTextBlock() {
209

210

211
        }
212

213

214
        @Override
215
        public void renderText(TextRenderInfo renderInfo) {
216
            List<TextRenderInfo> characterRenderInfos = renderInfo.getCharacterRenderInfos();
217
            for (TextRenderInfo textRenderInfo : characterRenderInfos) {
218
                String word = textRenderInfo.getText();
219
                if (word.length() > 1) {
220
                    word = word.substring(word.length() - 1, word.length());
221
                }
222
                Float rectangle = textRenderInfo.getAscentLine().getBoundingRectange();
223
                float x = (float) rectangle.getMinX();
224
                float y = (float) rectangle.getMinY();
225
                float charWidth = (float) (rectangle.getMaxX() - rectangle.getMinX());
226
                //也可以返回坐标相对于pdf页面大小的百分比
227
                float xPercent = Math.round(x / pageWidth * 10000) / 10000f;
228
                float yPercent = Math.round((1 - y / pageHeight) * 10000) / 10000f;
229

230
                CharPosition charPosition = new CharPosition(pageNum, x, y, charWidth);
231
                charPositions.add(charPosition);
232
                contentBuilder.append(word);
233
            }
234
        }
235

236

237
        @Override
238
        public void endTextBlock() {
239

240

241
        }
242

243

244
        @Override
245
        public void renderImage(ImageRenderInfo renderInfo) {
246

247

248
        }
249

250

251
        public String getContent() {
252
            return contentBuilder.toString();
253
        }
254

255

256
        public List<CharPosition> getcharPositions() {
257
            return charPositions;
258
        }
259
    }
260

261

262
    private static class CharPosition {
263
        private int pageNum = 0;
264
        private float x = 0;
265
        private float y = 0;
266
        private float charWidth = 0;//单个文字的宽度
267

268
        public CharPosition(int pageNum, float x, float y, float charWidth) {
269
            this.pageNum = pageNum;
270
            this.x = x;
271
            this.y = y;
272
            this.charWidth = charWidth;
273
        }
274

275

276
        public int getPageNum() {
277
            return pageNum;
278
        }
279

280

281
        public float getX() {
282
            return x;
283
        }
284

285

286
        public float getY() {
287
            return y;
288
        }
289

290
        public float getCharWidth() {
291
            return charWidth;
292
        }
293

294
        @Override
295
        public String toString() {
296
            return "[pageNum=" + this.pageNum + ",x=" + this.x + ",y=" + this.y + "]";
297
        }
298
    }
299
}
300

301
 复制

参考：Java 在pdf中通过关键字定位

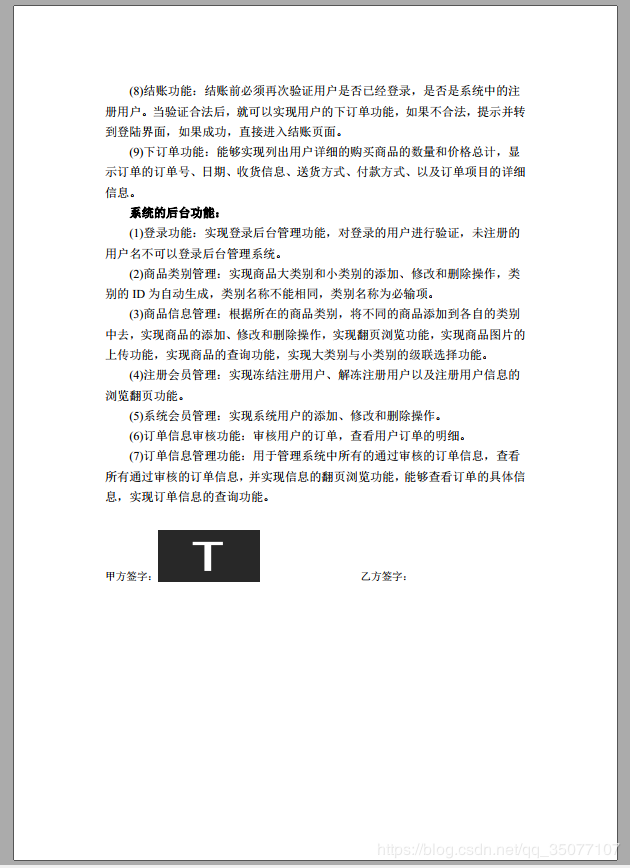

2.在查找到的坐标位置插入图片

1
package com.anyu;
2

3
import com.anyu.PDFUtils.PdfKeywordFinder;
4
import com.itextpdf.text.*;
5
import com.itextpdf.text.pdf.PdfContentByte;
6
import com.itextpdf.text.pdf.PdfReader;
7
import com.itextpdf.text.pdf.PdfStamper;
8
import com.itextpdf.text.pdf.PdfWriter;
9

10
import java.io.FileOutputStream;
11
import java.io.IOException;
12
import java.net.URL;
13
import java.util.Arrays;
14
import java.util.List;
15

16
/**
17
 * @author ：fan
18
 * @description: TODO
19
 * @date ：2019/10/20 15:10
20
 */
21
public class PDFImageTest1 {
22
    public static void main(String[] args) throws IOException, DocumentException {
23
        String pdfname="E:\\Desktop\\pdftest.pdf";
24
       //查找签名位置
25
        float[] position= PdfKeywordFinder.getAddImagePositionXY(pdfname,"甲方签字：");
26
        //Read file using PdfReader
27
        PdfReader pdfReader = new PdfReader(pdfname);
28
        System.out.println("x:"+position[1]+" y:"+position[2]);
29
//        float pageNum=positions.get(0)[0];
30
//        float x=positions.get(0)[1];
31
//        float y=positions.get(0)[2];
32
//        float charWidth=positions.get(0)[3];
33

34
//        System.out.println(Arrays.toString(positions.get(0)));
35
//        float temp[]=PdfKeywordFinder.getKeywordPositionXY(pdfname,"甲方签字");
36
//        for(int i=0;i<temp.length;i++){
37
//            System.out.println(temp[i]);
38
//        }
39

40

41
        //Modify file using PdfReader
42
        PdfStamper pdfStamper = new PdfStamper(pdfReader, new FileOutputStream("E:\\Desktop\\modified.pdf"));
43

44
        Image image = Image.getInstance("E:\\Desktop\\SignaturePicture\\testlogo.jpg");
45
        //Fixed Positioning
46
        image.scaleAbsolute(100, 50);
47
        //Scale to new height and new width of image
48
        image.setAbsolutePosition(position[1], position[2]);
49

50
        System.out.println("pages:"+pdfReader.getNumberOfPages());
51

52

53
        PdfContentByte content = pdfStamper.getUnderContent((int) position[0]);
54
        content.addImage(image);
55

56

57
        pdfStamper.close();
58
    }
59
}
